| Name | Date | Unit |

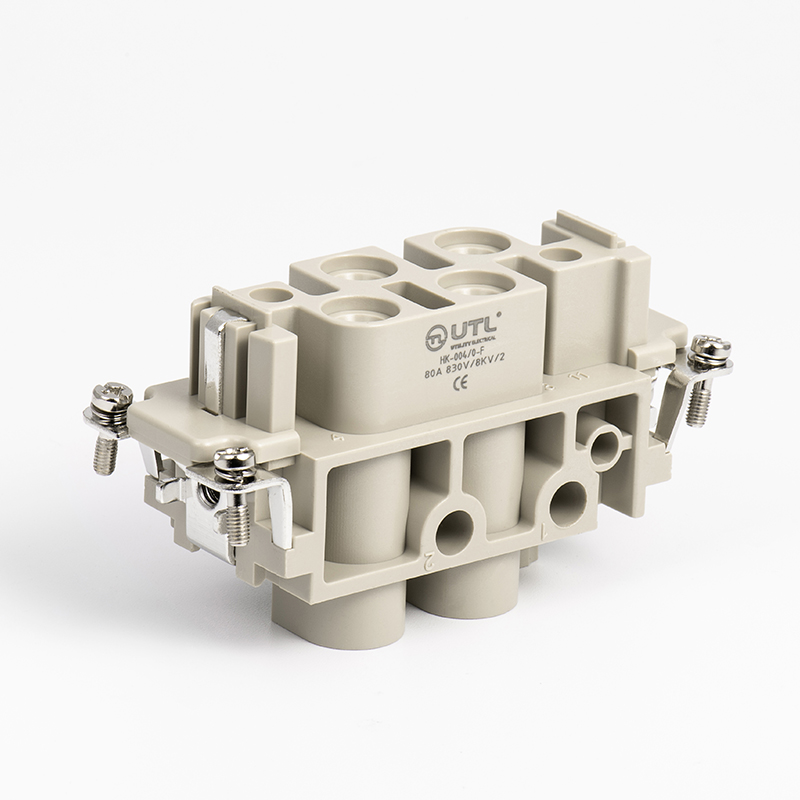

| Model | UTL-HK-004/0-F | |
| Type | Female | |
| Colour | Gray | |
| Number of contacts | 4 | |
| Length | 83.5 | mm |
| Width | 44.2 | mm |
| Height | 34 | mm |
| Standard |
IEC60664 IEC61984 |
|
| Rate voltage | 830 | V |
| Rate current | 80 | A |
| Pollution degree | Ⅲ | |
| Rate impulse voltage | 8 | KV |
| Insulation resistance | ≤0.3 | mΩ |
| Min.connection capacity for solid wire | 1.5/16 | mm2/AWG |
| Max.connection capacity for solid wire | 16/6 | mm2/AWG |
| Min.connection capacity for strand wire | 1.5/16 | mm2/AWG |
| Max.connection capacity for strand wire | 16/6 | mm2/AWG |
| Torque | 3 | N.m |
| Insulation resistance | 1010 | Ω |
| Mechanical woking life | ≥500 | Times |
| Housing meterial | PC(UL94 V-0) | |
| Metal meterial | Copper alloy | |
| Operating temperature | -40℃～+125℃ | |
| Certification |
|
